$0.20 – $1.00#Min.Order:100 meters#
OUR PRODUCTS
Tailored products for optimal performance

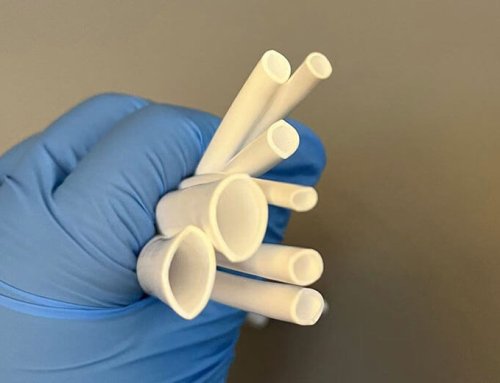

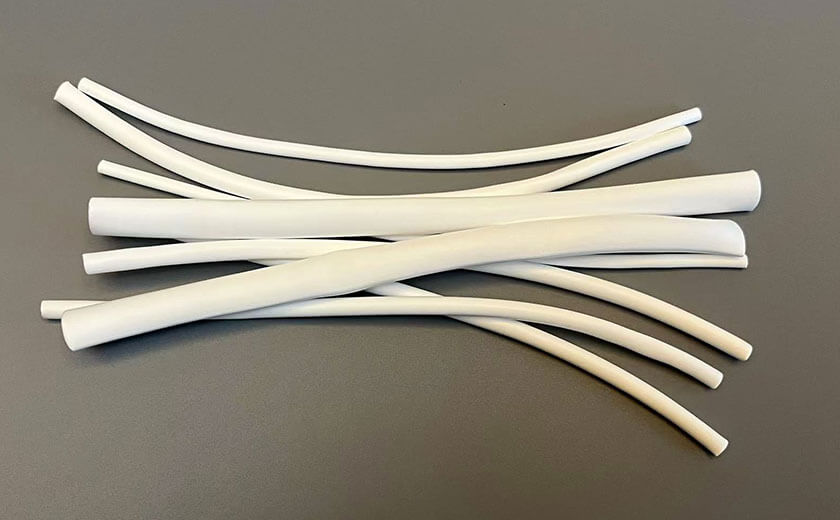

| Product name | Expanded PTFE(ePTFE) Tubing for Chromatography Instruments |
| Product price | $0.20~1.00 |
| Material structure | 100% Virgin EPTFE Resin |
| Specification | customized specified |
| Standard | ISO9001;ROHS |
| MOQ | 100 meters |
| Delivery | 7-15 days |
| Usage | In chromatography instruments, Expanded PTFE (ePTFE) tubing is primarily employed in low-pressure fluid and gas paths where its unique properties are most beneficial, while carefully avoiding high-pressure applications due to its mechanical limitations. Its most critical use is in Gas Chromatography (GC) systems for carrier and detector gas lines, as its extremely low gas permeability effectively prevents atmospheric oxygen and moisture from diffusing through the tube walls, thereby safeguarding the integrity of the analytical column and the sensitivity of detectors. In Liquid Chromatography (HPLC), ePTFE tubing finds application in non-pressurized streams such as solvent inlet lines from reservoirs to the pump, waste drain lines after the detector, and for various vent or purge functions, where its exceptional chemical inertness ensures compatibility with a wide range of solvents and acids without introducing contaminants. However, it is expressly not used in the high-pressure section of an HPLC system between the pump and the column due to its insufficient pressure resistance. Additionally, for ultra-sensitive analyses like LC-MS,potential very low-level extractable compounds must be considered, as they could contribute to background noise. |
| Main features | 1.Exceptional Chemical Resistance: ePTFE is highly inert and resistant to a wide range of corrosive chemicals, acids, bases, and organic solvents, ensuring fluid purity . 2.Low Permeability: A key feature of ePTFE is its very low gas permeability, which is critical for preventing atmospheric gases from contaminating the chromatographic system. 3.Thermal Stability: It can withstand a broad range of temperatures, with a long-term service temperature up to 260°C, making it suitable for high-temperature processes. 4.Flexibility: ePTFE tubing is flexible, which facilitates easier installation in complex instrument setups. 5.Smooth Surface: The material has a low friction coefficient, which helps reduce flow resistance and minimizes the potential for blockages. |
| Application | 1.Liquid Chromatography (HPLC): It is used in the low-pressure sections of HPLC systems for solvent and waste transport . It is also mentioned as a material in the fluid path of chromatography columns designed for techniques using organic solvents . 2.Gas Chromatography (GC): Its low gas permeability makes it well-suited for carrier gas and detector gas lines in GC to maintain gas purity. 3.Filtration Systems: ePTFE membranes are used for filtering corrosive solvents and samples prior to injection into chromatographs like HPLC or IC, protecting the columns from particulate matter. 4.Flash Chromatography: Components featuring PTFE, such as valves and connectors, are used in flash chromatography systems for their chemical resistance and safety. |
| Samples | Free samples,you just need to pay for the courier charges |
| Brand | Mochitek |
| Places of origin | Anhui,China |
OUR COMPANY
Specializing in fluoropolymer solutions
OUR CERTIFICATES
SHIPMENT SERVICE
Ensure fast and safe delivery of goods, and offer multiple payment methods.
FAQs
Find answers to the most frequently asked questions.
Q1. who are we?
We are based in Anhui, China, start from 2019,sell to Southeast Asia(50.00%),South Asia(10.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Eastern Asia(5.00%),South America(5.00%). There are total about 11-50 people in our office.
Q2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.what can you buy from us?
plastic tube,fep tube,pfa tube,fep heat shrink tube,ptfe tube
Q4. why should you buy from us not from other suppliers?
we are one of the main manufacturer of medical fep heat shrink tube in china so far, owning ISO , ROHS certificates and so on , getting the technical support from university lab quality is assured, price is very competitive , lead time always on time
Q5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
