Innovative Multi-Lumen Tubes for Medical Use

Overview:

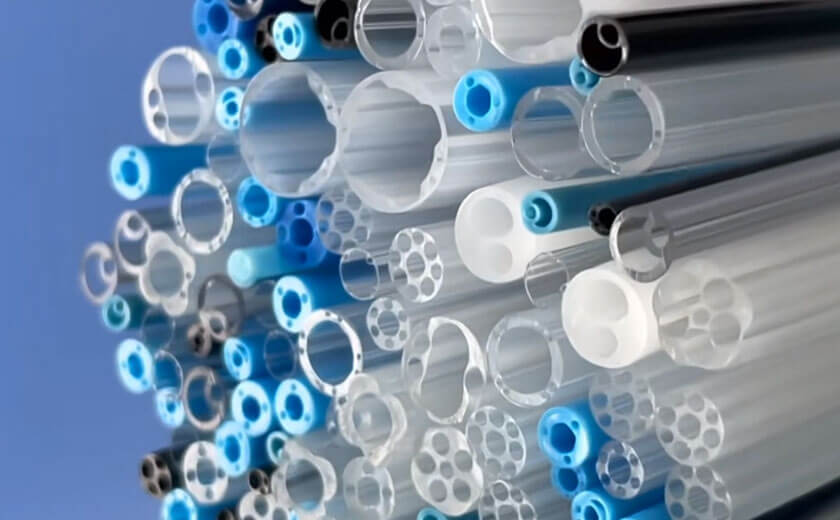

Mochitek Multi-Lumen Tubes represent a uniquely designed and versatile tubing system characterized by the presence of two or more independent lumens or channels within its structure. Each lumen serves a specific function, such as spraying medication, draining fluids, or locating organs. By operating through different lumens, medical multi-lumen catheters enable rapid and accurate inspection, diagnosis, and treatment.

Multi-lumen tubes are ideal for both medical and industrial applications, with medical multi-lumen tubes in particular providing doctors across many medical fields with a rapid, efficient, and safe treatment method. Our multi-lumen tubes come in various forms and can be customized according to customers’ drawings. Currently, our products have an extruded outer diameter ranging from 0.20 to 20mm, an inner diameter from 0.10 to 18mm, and a wall thickness from 0.05mm to 3.0mm, with a tolerance accuracy of up to ±0.02mm.

The extrusion materials we offer include FEP, PTFE, Pebax®, ETFE, PVDF, PEEK, and more. Simply provide us with your design drawings, and we can manufacture and supply according to your specifications.

Processing Capabilities:

Diverse product types and shapes with almost unlimited cross-sectional configurations
Various sizes with strict tolerance control
A range of colors available for customization
Options for including radiopaque lines or full radiopacity
Multiple resin materials to choose from
Surface etching for improved adhesion

Applications:
