$0.20 – $1.00#Min.Order:100 meters#
OUR PRODUCTS
Tailored products for optimal performance

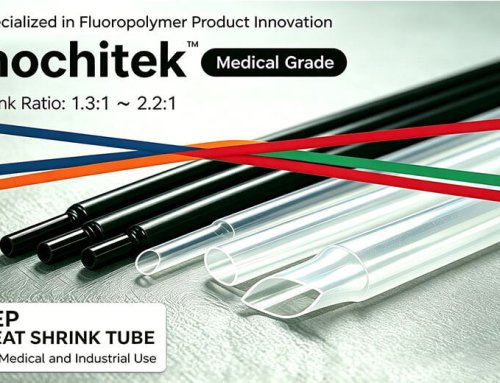

| Product name | FEP Heat Shrink Tubing Manufacturers, Suppliers & Exporters |
| Product price | $0.20~1.00 |
| Material structure | FEP |
| Specification | |
| Standard | ISO9001;ROHS |
| MOQ | 100 meters |
| Delivery | 7-15 days |
| Usage | Mochitek FEP heat shrink tubing is manufactured through a precision two‑step process—first extruded as straight tubing, then radially expanded via secondary blow‑up to create genuine heat‑shrink memory—and is designed for straightforward, reliable field application: simply select the appropriate expanded size based on the required recovered inner diameter, slip the tubing over wire bundles, cable splices, medical catheter components, or any substrate requiring protection or insulation, apply uniform heat using a hot air gun, infrared tunnel, or convection oven within the recommended range of +150°C to +200°C, and observe as the tubing uniformly recovers to its original extruded dimensions, conforming tightly without twisting, wall thinning, or eccentricity; upon cooling to room temperature, the FEP material retains its dimensional stability and mechanical grip permanently, and the tubing can also serve as a temporary holding sleeve in multi‑layer device manufacturing—applied, heated, then cleanly peeled off thanks to FEP’s inherent non‑stick properties—while being fully compatible with automated assembly lines, pre‑cutting, spooling, and custom printing for high‑volume production environments. |
| Main features | 1. True Heat‑Shrink Memory (Secondary Blow Technology) * First extruded as straight tubing, then expanded radially under controlled heat and pressure. * Rapid cooling “freezes” the expanded dimensions; reheating triggers recovery to pre‑expansion size. * Value: Uniform shrinkage force, no ovality, stable memory batch after batch. 2. Optical Transparency * Virgin FEP resin delivers excellent light transmission even after expansion. * Value: Enables visual inspection of internal components, fluid flow, or splice connections. 3. Wide Dimensional Range * Recovered ID: from 0.3 mm (medical micro‑tubing) up to 110 mm (industrial heavy‑wall). * Expansion ratios: 1.3:1, 1.6:1, 1.8:1, 2:1 and custom ratios available. * Value: One supplier covers everything from delicate catheters to large‑bore industrial protection. 4. Thermal & Chemical Resistance * Continuous operating temperature: –65°C to +200°C. * Inert to nearly all chemicals, solvents, and acids. * Value: Reliable in soldering, autoclaving, and aggressive fluid environments. 5. Non‑Stick Surface * Extremely low surface energy; molten FEP does not adhere to wires, mandrels, or molds. * Value: Easy peel‑off after heat setting; ideal for temporary mandrel covers and reusable tooling. 6. Medical‑Grade & Biocompatible Options * Available in clear and black (laser‑marking friendly, anti‑glare). * Compliant with ISO 10993 for short‑term contact with tissue or fluid. * Value: Direct use in interventional devices, endoscopy tools, and surgical instruments. 7. Customization & Low MOQ * Custom expanded IDs, wall thicknesses, colors, and packaging. * Logo printing, stripe marking, and laser marking supported. * Value: OEM/ODM projects welcomed – from R&D samples to full container loads. |
| Application | 1. Medical Devices & Life Sciences – Primary expertise area * Balloon catheter & guide catheter manufacturing: used as a temporary shrink sleeve to bond inner layers; removed after lamination. * Endoscopic instruments: black FEP heat shrink reduces light reflection on forceps channels and fiber bundles. * Multilumen tubing forming: holds PEBAX, nylon, or polyimide layers during thermal fusion. * Electrosurgical tool insulation: high‑dielectric protection for active cord tips. 2. Electrical & Electronics * High‑temperature wire harnessing: engine compartments, industrial heaters, soldering irons. * Sensor encapsulation: temperature probes, pressure transducers requiring corrosion‑resistant sheaths. * LED tube protection: transparent anti‑shatter sleeve for T8/LED lamps. 3. Industrial & Semiconductor * Chemical line jacketing: protective outer layer for Teflon/PFA tubing in wet bench equipment. * Battery cell insulation: tear‑resistant, electrolyte‑proof sleeving for lithium‑ion battery tabs. * Semiconductor manufacturing: non‑contaminating cable bundling in plasma chambers and wafer handling tools. 4. Aerospace & Defense * Wire identification & strain relief: lightweight, flame‑retardant solution for avionics. * Hydraulic line abrasion protection: flexible yet tough cover for high‑pressure hoses. 5. Automotive * EV battery pack insulation: dielectric barrier for busbars and high‑voltage interconnects. * Fluid line marking: transparent sleeve with printed legends for fuel/coolant circuits. |
| Samples | Free samples,you just need to pay for the courier charges |
| Brand | Mochitek |
| Places of origin | Anhui,China |
OUR COMPANY
Specializing in fluoropolymer solutions
OUR CERTIFICATES
COMPANY CONTACT
To ask for more information, request a quote or discuss your requirements.
SHIPMENT SERVICE
Ensure fast and safe delivery of goods, and offer multiple payment methods.
FAQs
Find answers to the most frequently asked questions.
Q1. who are we?
We are based in Anhui, China, start from 2019,sell to Southeast Asia(50.00%),South Asia(10.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Eastern Asia(5.00%),South America(5.00%). There are total about 11-50 people in our office.
Q2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3.what can you buy from us?
plastic tube,fep tube,pfa tube,fep heat shrink tube,ptfe tube
Q4. why should you buy from us not from other suppliers?
we are one of the main manufacturer of medical fep heat shrink tube in china so far, owning ISO , ROHS certificates and so on , getting the technical support from university lab quality is assured, price is very competitive , lead time always on time
Q5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
